Conveyor Solutions
Metal Conveyor Belts
Wire Mesh | Eyelink | TwenteFlex | TwenteSideFlex | Balanced Weave
Focus on Food Safety – FDA, GMP, 1935/2004/EC

TwenteFlex conveyor belts are manufactured in accordance with the latest food safety requirements for food processing equipment. This ensures you get a belt that is fit for use in the most demanding of food processing applications.

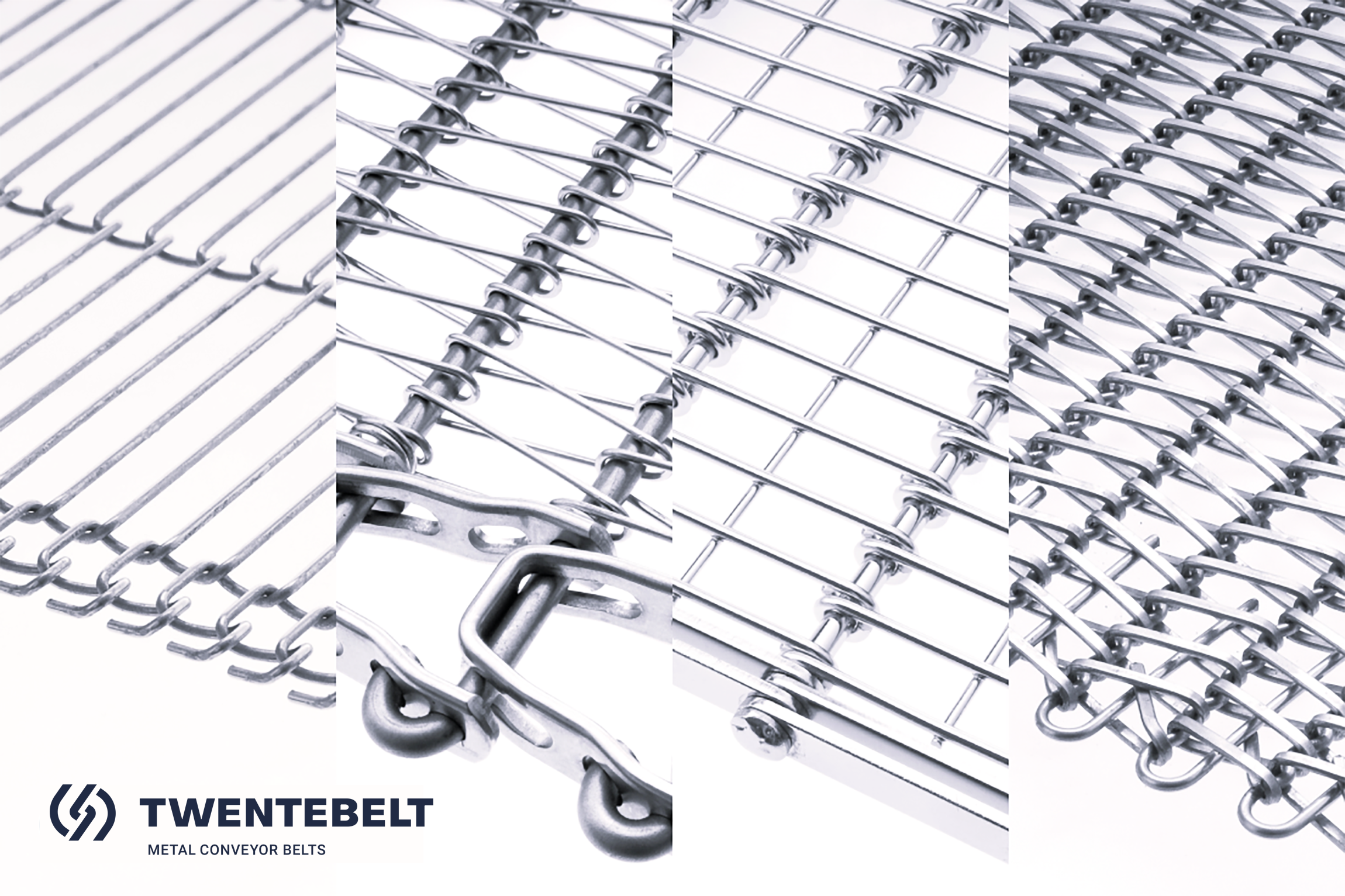

Twentebelt has been a specialist in metal conveyor belts for over 100 years. Twentebelt develops and produces a wide range of metal belts such as Eyelink belts, wire mesh belts, balanced weave, and spiral wire link belts in various materials.
These belts are found in the food, chemical, pharmaceutical, and packaging industries. Each belt is designed and built according to your specific application and working conditions. Twentebelt is the worldwide market leader in Eyelink Belts.
FlexCAM are the sole supplier of Twentebelt products across Australia, New Zealand, and the Pacific Islands.

Wire Mesh Belts
Wire mesh belts are best suited for:
- enrobing
- glazing
- frying
- coating
- dough rolling
- baking
- cooling
- freezing
- battering
- breading
- crumbing
- shrink wrapping
Design features and benefits:
Wire mesh belts are manufactured from 302 or 316 SS providing a hygienic solution suitable for raw food handling.
- Wire mesh belts can withstand both low and high temperatures, making them suitable for a wide range of applications.
- Driven by Stainless Steel or Acetal (POM) sprockets providing true belt tracking.
- Can be supplied for tight product transfers.
- Wide range of wire diameter (0.9mm – 2.8mm), pitch (3.5mm – 20.32mm, and mesh length available.
- Belt widths up to 5000mm are possible.
- We can supply belts with various pusher and carrier flights as well as radius belts for corner applications.

Eyelink Belts
Eyelink Mesh Belts are best suited for:
- pasteurisers
- baking
- deep frying
- blanching
- washing
- fishing
- cooling
- freezing
- drying
Design features and benefits
- SS and Acetal / SS belt types can be supplied.
- Steel (bright), 304SS and 316SS materials available.
- Flights or pushers can be provided for incline / decline applications.
- A range of side finishes are available (Welded Edge, Hollow pin chain, Guide plates, Plastic blocks)
- Chain pitch from 15.9mm – 76.2mm.
- Wire diameters from 1.6mm – 3.2mm can be provided.
- Sprockets can be supplied in 304, 316, PA6G (Nylon) and Acetal (POM) as well as cage and disc rollers.
- Temperature range form -80 Celsius to +350 Celsius

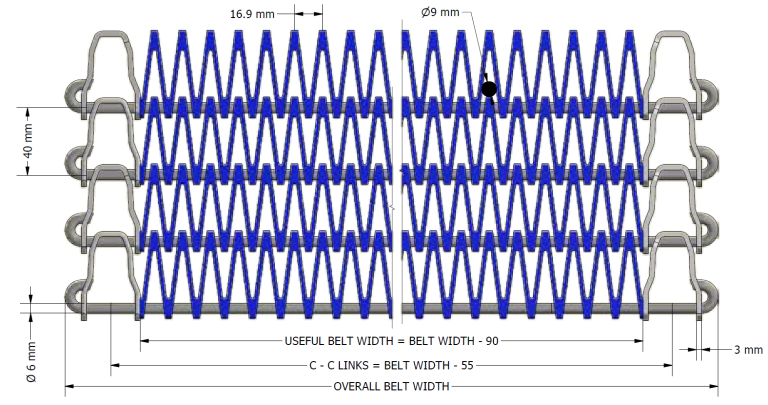

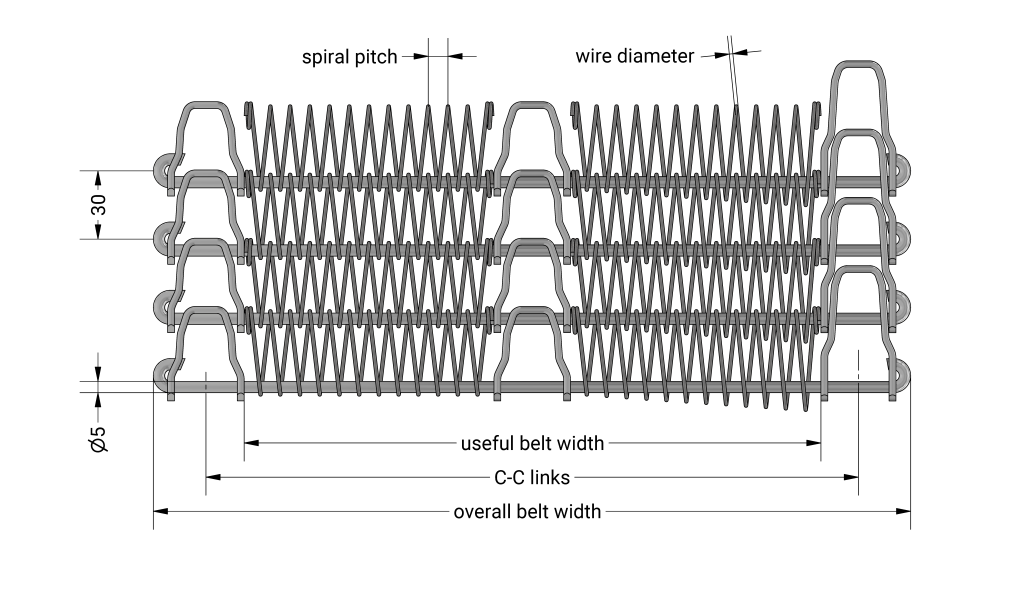

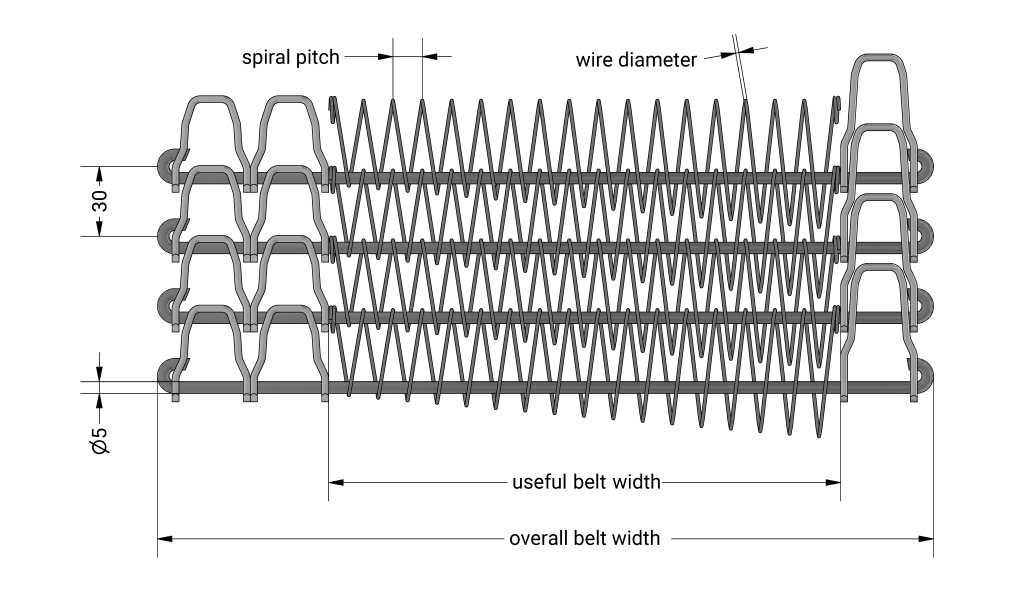

TwenteFlex Conveyor Belts
The first spiral belt without welds
TwenteFlex Belts are best suited for:
- freezing
- steam cooking
- cooling
- frying
- proofing
- general conveying
Design features and benefits
- Can be retrofitted to most makes of spirals.
- Available in both 30mm and 40mm pitch.
- Full SS material or Hybrid – SS rods with Acetal overlay (Flame retardant material also available)
- These belts use a revolutionary cross rod design that has no welding. The rods are bent at the ends in a special process, providing a smoother, more reliable surface across the drum.
- Quicker cleaning times and reduced operating costs as a result of the innovative design.
- Can be used as high- or low-tension spirals or as straight running / side-flexing conveyors.
- By incorporating machined cage bars, they can be used as “Inside Direct Drive” spirals. This allows for longer belt lengths as well as providing more stable and predictable belt tensions.

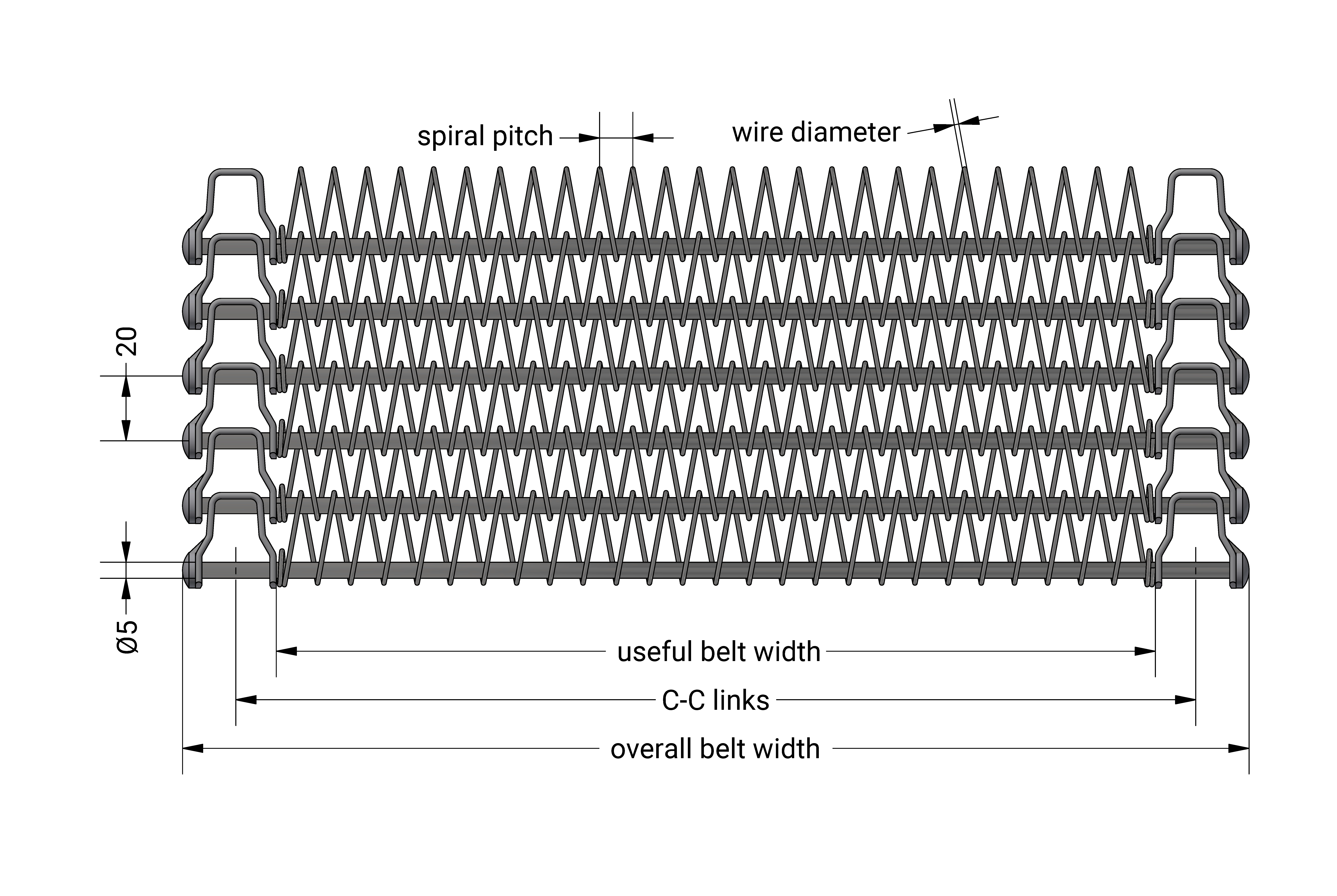

Straight Running and Curved Conveyor Belts TBW 20 – TBU 30 – TBU 40
Design features and benefits
- 20, 30 and 40mm pitch belts available.
- SS and Hybrid – Acetal (POM) and Nylon (PA6) overlay on SS rods.

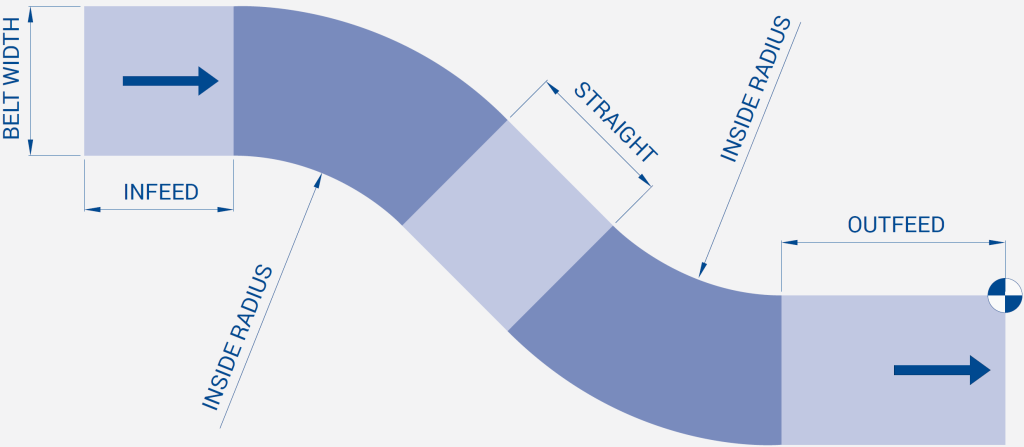

- 1.6, 2.2, 2.5- and 2.8-times belt width radius on bends.
- 4.2mm – 16.9mm lateral pitch.
TwenteSideFlex – Side Drive spiral belting
TwenteFlex Belts are best suited for:
- frying
- cooling
- proofing
- freezing
Design features and benefits
- Each tier is driven by an individual sprocket off a vertical shaft. This provides the ability to tension each tier individually and run conveyors of unlimited length.
- The system can be designed with multiple belts to enable two or more production lines – feeding different spiral conveyors – sharing the same footprint.
- Production flow can be up, down or multi-directional in one footprint with multiple entry and exit points.
- As there is no drum, the need for an overdrive or belt slippage between the drum and belt is eliminated. This minimises the risk of “Christmas Treeing” and makes the product more stable compared to drum spirals.
- TwenteSideFlex is a more affordable option than traditional spirals offering a quicker ROI.
- The open space within the spiral allows for better airflow or storage of evaporative coolers.
- Cleaning of the belt is simple with access to both the internal and external surfaces made easy.
- Low ongoing maintenance requirements and costs
Possible design layouts (round, oval and P-loop)


Balanced Weave belt
Balanced Weave belts are best suited for:
- glass furnaces and kilns
- bakery ovens
- snack food manufacture
- brazing and annealing lines
- potato processing
- pasteurising
- freezing
- drying
- cooling
Design features and benefits
- Exceptionally strong belts.
- Can be supplied in both Ferrous and non-Ferrous materials (even in a single belt).
- Edge plates and flights can be provided.
- Driven by friction rollers over the entire belt width or positively driven sprockets.
- Suitable for very high temperature applications (+1000°C).

Specialty Belts
Balanced Weave belts are best suited for:
- plate belts
- filter plates
- conveyor curves
